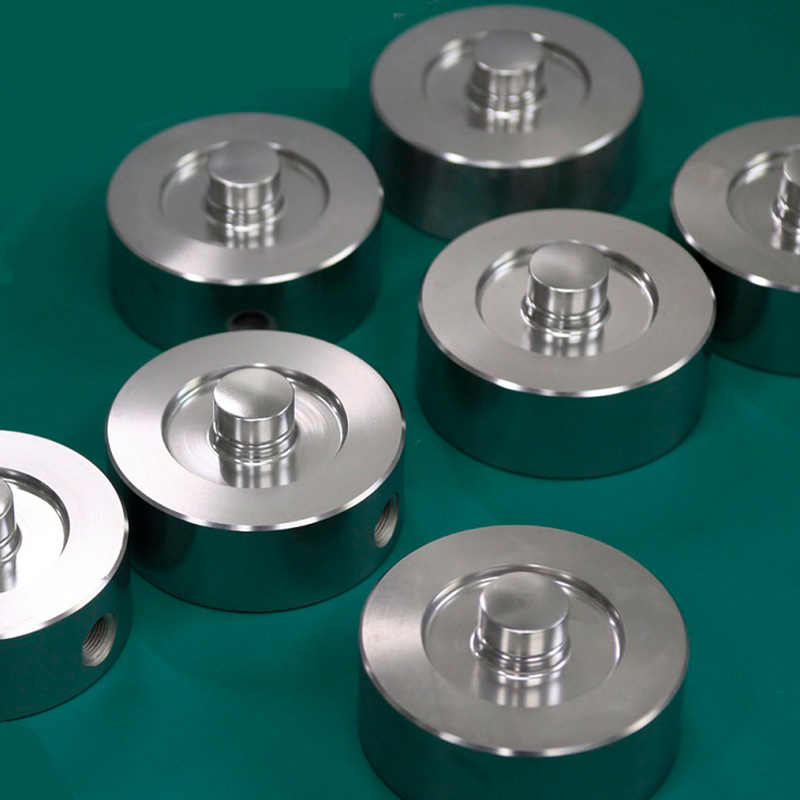

The elastomer of wheel shape (also known as spoke-type) Load Cell is a hole structure, which is also a kind of shear beam load cell. Its whole structure looks like a wheel, and a plurality of spokes are symmetrically distributed between the hub and the tire. An external load is applied to the upper end of the hub. The hub, spokes, and tires together form shear beams with fixed supports on either side. Wheel shape load cell has good rigidity, strong side force resistance, and overload self-locking function, and can be used for floor scale, crane scale, and tester etc.
Strong impact resistance and partial load resistance
not affected by the loading point and support edge
with good linearity, good interchangeability
fixed installation, easy installation
Can withstand tension and pressure
Wheel shape load cell ZH-WS1
| Capacity | 0.5-50t | Material | Alloy steel/stainless steel |
| Rated Output(mV/V) | 2.0±0.005 | Nonlinearity | ±0.03%FS |
| Hysteresis | ±0.03%FS | Repeatability | ±0.02%FS |
| Creep(30 minutes) | ±0.02%FS | Zero balance | ±1.00%FS |
| Temperature effect on zero | ±0.02%F.S./10℃ | Temperature effect on output | ±0.02%F.S./10℃ |
| Input resistance（Ω） | 385±15 | Output resistance（Ω） | 350± 3 |
| 765±15 | 700±5 | ||
| Insulation resistance | ≥5000MΩ | Excitation voltage | 5V-10V(DC) |
| Compensated temperature range | -10~+50℃ | Operating temperature range | -20~+60℃ |
| Safe overload | 120%FS | Breaking loading | 150%FS |
| Cable | Φ5.4（6） X 9M | Cable color code | Input: red+ black- |
| Or customized by request | Output: green+ white- |
Wheel shape load cell ZH-WS2
| Capacity | 0.5-50t | Material | Alloy steel/stainless steel |
| Rated Output(mV/V) | 2.0±0.005 | Nonlinearity | ±0.03%FS |
| Hysteresis | ±0.03%FS | Repeatability | ±0.02%FS |
| Creep(30 minutes) | ±0.02%FS | Zero balance | ±1.00%FS |
| Temperature effect on zero | ±0.02%F.S./10℃ | Temperature effect on output | ±0.02%F.S./10℃ |
| Input resistance（Ω） | 385±15 | Output resistance（Ω） | 350± 3 |
| 765±15 | 700±5 | ||
| Insulation resistance | ≥5000MΩ | Excitation voltage | 5V-10V(DC) |
| Compensated temperature range | -10~+50℃ | Operating temperature range | -20~+60℃ |
| Safe overload | 120%FS | Breaking loading | 150%FS |
| Cable | Φ5.4（6） X 9M | Cable color code | Input: red+ black- |
| Or customized by request | Output: green+ white- |
Wheel shape load cell ZH-WS4
| Capacity | 10-470t | Material | Alloy steel |
| Rated Output(mV/V) | 2.85±0.005 | Nonlinearity | ±0.05%FS |
| Hysteresis | ±0.05%FS | Repeatability | ±0.02%FS |
| Creep(30 minutes) | ±0.02%FS | Zero balance | ±1.00%FS |
| Temperature effect on zero | ±0.02%F.S./10℃ | Temperature effect on output | ±0.02%F.S./10℃ |
| Input resistance（Ω） | 1400±15 | Output resistance（Ω） | 1400±3 |
| Insulation resistance | ≥5000MΩ | Excitation voltage | 5V-10V(DC) |
| Compensated temperature range | -10~+50℃ | Operating temperature range | -20~+60℃ |
| Safe overload | 120%FS | Breaking loading | 150%FS |
| Cable | Φ5.4 X 9M | Cable color code | Input: red+ black- |
| Or customized by request | Output: green+ white- |
Wheel shape load cell ZH-WS6
| Capacity | 0.5-5t | Material | Alloy steel/stainless steel |
| Rated Output(mV/V) | 1.60±0.005 | Nonlinearity | ±0.2%FS |
| Hysteresis | ±0.2%FS | Repeatability | ±0.03%FS |
| Creep(30 minutes) | ±0.03%FS | Zero balance | ±2.00%FS |
| Temperature effect on zero | ±0.05%F.S./10℃ | Temperature effect on output | ±0.05%F.S./10℃ |
| Input resistance（Ω） | 750±10 | Output resistance（Ω） | 700±7 |
| Insulation resistance | ≥5000MΩ | Excitation voltage | 5V-10V(DC) |
| Compensated temperature range | -10~+50℃ | Operating temperature range | -20~+60℃ |
| Safe overload | 120%FS | Breaking loading | 150%FS |
| Cable | Φ4 X 1M | Cable color code | Input: red+ black- |
| Or customized by request | Output: green+ white- |
Wheel shape load cell ZH-WS7
| Capacity | 2.5-30t | Material | stainless steel |
| Rated Output(mV/V) | 2.0±0.005 | Nonlinearity | ±0.05%FS |
| Hysteresis | ±0.05%FS | Repeatability | ±0.02%FS |
| Creep(30 minutes) | ±0.02%FS | Zero balance | ±1.00%FS |
| Temperature effect on zero | ±0.02%F.S./10℃ | Temperature effect on output | ±0.02%F.S./10℃ |
| Input resistance（Ω） | 750±10 | Output resistance（Ω） | 700±5 |
| Insulation resistance | ≥5000MΩ | Excitation voltage | 5V-10V(DC) |
| Compensated temperature range | -10~+50℃ | Operating temperature range | -20~+60℃ |
| Safe overload | 120%FS | Breaking loading | 150%FS |
| Cable | Φ5.4 X 6M | Cable color code | Input: red+ black- |
| Or customized by request | Output: green+ white- |
Mainly used for floor scale, crane scale, truck scale, train scale, testing machine and other measurement occasions etc.
