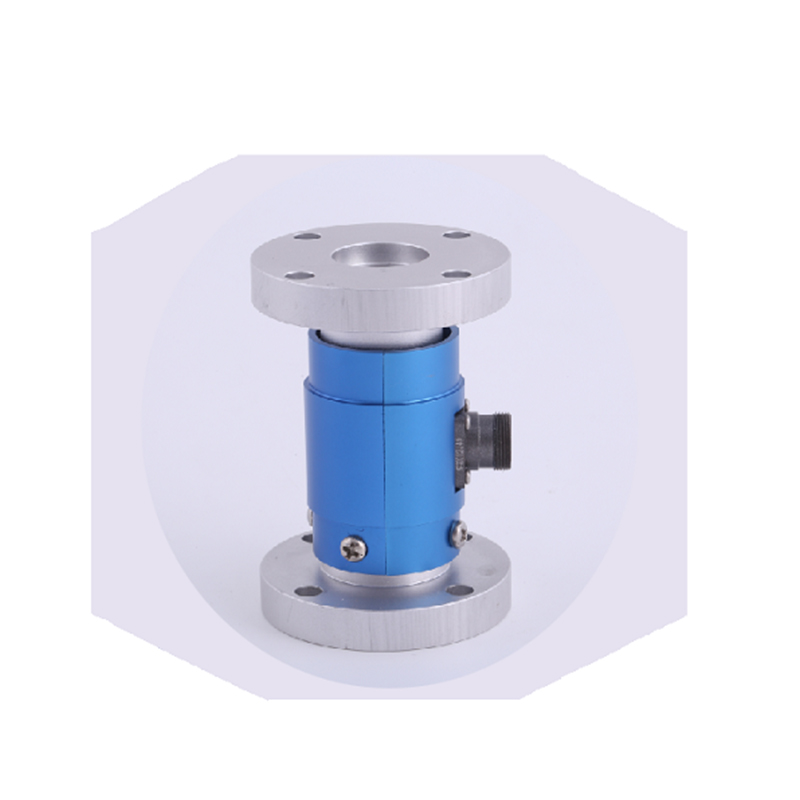

The torque load cell is produced on the base of special strain bridge technology, which is suitable for torque measurement with small volume and high speed. The torque load cell is easy for installment, small size, has a strong ability to resist signal interference, and is suitable for long distance transmission, optional speed.
Adopting high-precision resistance strain principle
With unique technology, stable property
Small capacity torque testing, convenient for installation

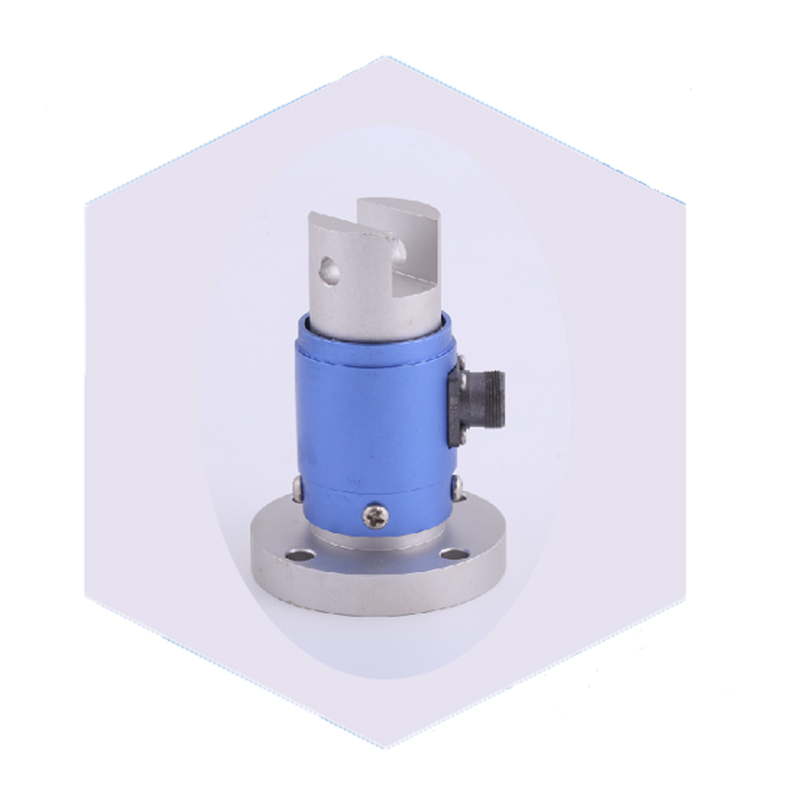

one end for joint, the other end for flange joint
Using for various static/dynamic torque measurement environment
Torque Load Cell ZH-NJ
| Capacity | 0-0.5，1，2，5，10，20，50，100Nm | Material | Alloy steel |
| Rated Output(mV/V) | 1.0-2.0mV/V | Nonlinearity | ±0.1%；±0.3%；±0.5%F.S |
| Hysteresis | ±0.1%；±0.3%；±0.5%F.S | Repeatability | ±0.1%；±0.3%；±0.5%F.S |
| Temperature effect on zero | ±0.1%F.S/10℃ | Zero balance | ±1.00%FS |
| Input resistance（Ω） | 700±10Ω/350±10Ω | Output resistance（Ω） | 700±5Ω/350±5Ω |
| Insulation resistance | ≥2000MΩ | Excitation voltage | 5-12V DC |
| Compensated temperature range | Room temperature～+70℃ | Operating temperature range | -20~+60℃ |
| Safe Overload | 120%FS | Cable color code | Input: red+ black- |
| Output: green+ white- |

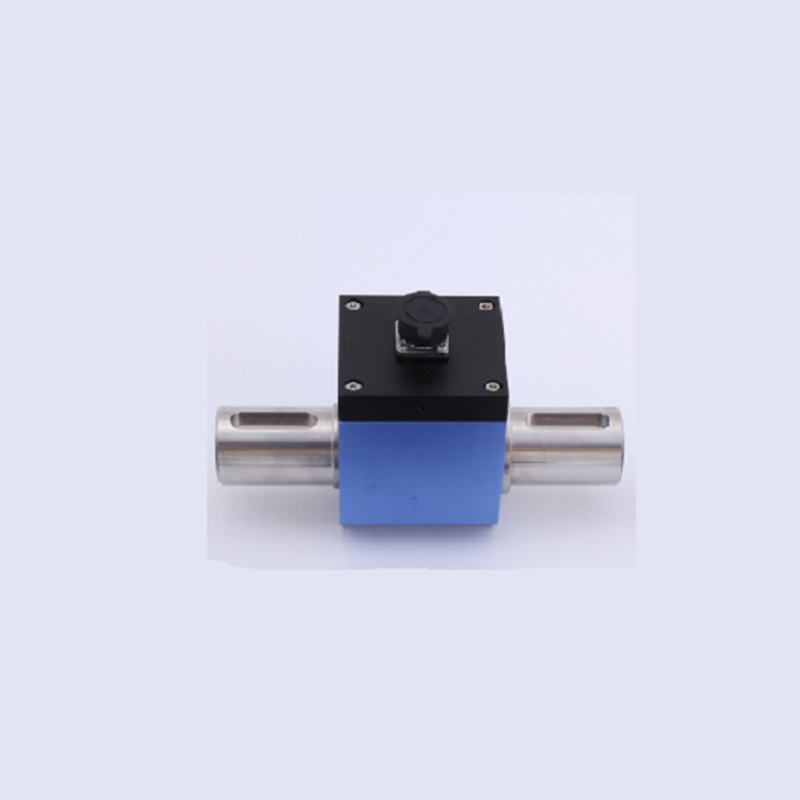

Torque Load Cell ZH-FA603A
| Capacity | 3-5，10，20，50，100Nm | Material | Alloy steel |
| Rated Output(mV/V) | 1.0-1.5mV/V | Nonlinearity | 0.2%F.S |
| Hysteresis | 0.2%F.S | Repeatability | 0.1%F.S |
| Temperature effect on zero | 0.05%F.S/10℃ | Zero balance | ±1.00%FS |
| Input resistance（Ω） | 700±10Ω/350±10Ω | Output resistance（Ω） | 700±10Ω/350±10Ω |
| Insulation resistance | ≥2000MΩ | Excitation voltage | 24V DC |
| Compensated temperature range | -10~60℃ | Operating temperature range | -20~+60℃ |
| Safe Overload | 120%FS | Cable color code | Input: red+ black- |
| Output: green+ white- |
Testing for the torque output and power of motor, engine, internal combustion engine and other rotating power equipment
Testing for the torque and power of the fan, water pump, gear box, torque plate
Testing for the torque and power of railway locomotive, automobile, tractor, aircraft, ship and mining machinery
Using for Torque and power testing of the sewage treatment system, manufacturing monitoring and quality controlling request
