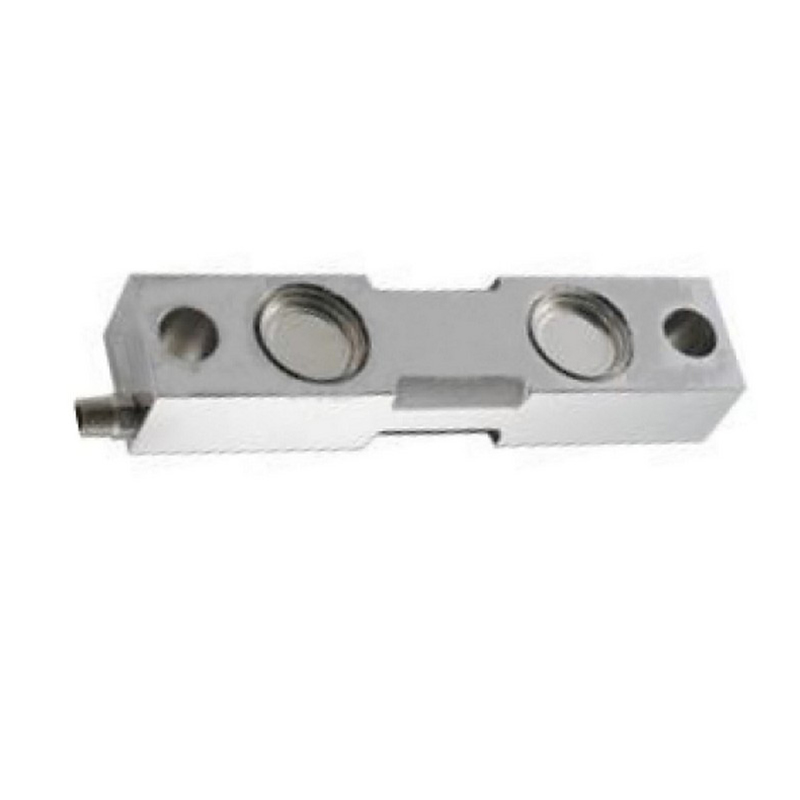

Double Shear Beam Load Cell is also called “ bridge load cell”. Double Shear Beam Load Cell is mainly used in electronic truck scale, dynamic railroad scale, big capacity hopper scale and other weighing system. Double Shear Beam Load Cell is one of the most popular products in the market.
Adopting high-precision resistance strain principle
With unique technology, stable property
Potted or laser sealing, insurance for the using surrounding
Alloy steel/stainless steel material, preventing of oil, moisture and corrosion
Double Shear Beam Load Cell ZH-DS1
| Capacity | 10-40t | Material | Alloy steel |
| Rated Output(mV/V) | 2.0±0.005 | Nonlinearity | ±0.03%FS |
| Hysteresis | ±0.03%FS | Repeatability | ±0.01%FS |
| Creep(30 minutes) | ±0.02%FS | Zero balance | ±1.00%FS |
| Temperature effect on zero | ±0.02%F.S./10℃ | Temperature effect on output | ±0.02%F.S./10℃ |
| Input resistance（Ω） | 770±10 | Output resistance（Ω） | 700±5 |
| Or customized by request | |||
| Insulation resistance | ≥5000MΩ | Excitation voltage | 5V-10V(DC) |
| Compensated temperature range | -10~+50℃ | Operating temperature range | -20~+60℃ |
| Safe overload | 120%FS | Breaking loading | 150%FS |
| Cable | Φ6 X 12M | Cable color code | Input: red+ black- |
| Or customized by request | Output: green+ white- |
Double Shear Beam Load Cell ZH-DS2
| Capacity | 1klb-50klb | Material | Alloy steel/ stainless steel |
| Rated Output(mV/V) | 3.0±0.005 | Nonlinearity | ±0.05%FS |
| Hysteresis | ±0.05%FS | Repeatability | ±0.01%FS |
| Creep(30 minutes) | ±0.02%FS | Zero balance | ±1.00%FS |
| Temperature effect on zero | ±0.02%F.S./10℃ | Temperature effect on output | ±0.02%F.S./10℃ |
| Input resistance（Ω） | 700±10 | Output resistance（Ω） | 700±5 |
| Insulation resistance | ≥5000MΩ | Excitation voltage | 5V-10V(DC) |
| Compensated temperature range | -10~+50℃ | Operating temperature range | -20~+60℃ |
| Safe overload | 120%FS | Breaking loading | 150%FS |
| Cable | Φ5.4 (6) X 12M | Cable color code | Input: red+ black- |
| Or customized by request | Output: green+ white- |
Double Shear Beam Load Cell ZH-DS3
| Capacity | 10-75klb | Material | Alloy steel |
| Rated Output(mV/V) | 3.0±0.01 | Nonlinearity | ±0.03%FS |
| Hysteresis | ±0.05%FS | Repeatability | ±0.02%FS |
| Creep(30 minutes) | ±0.03%FS | Zero balance | ±1.00%FS |
| Temperature effect on zero | ±0.03%F.S./10℃ | Temperature effect on output | ±0.03%F.S./10℃ |
| Input resistance（Ω） | 700±10 | Output resistance（Ω） | 700±5 |
| Or customized by request | |||
| Insulation resistance | ≥5000MΩ | Excitation voltage | 5V-10V(DC) |
| Compensated temperature range | -10~+50℃ | Operating temperature range | -20~+60℃ |
| Safe overload | 120%FS | Breaking loading | 150%FS |
| Cable | Φ6 X 10M | Cable color code | Input: red+ black- |
| Or customized by request | Output: green+ white- |
Double Shear Beam Load Cell ZH-DS4
| Capacity | 12.5klb-30klb | Material | Alloy steel |
| Rated Output(mV/V) | 0.5±0.01 | Nonlinearity | ±0.3%FS |
| Hysteresis | ±0.3%FS | Repeatability | ±0.1%FS |
| Creep(30 minutes) | ±0.1%FS | Zero balance | ±2.00%FS |
| Temperature effect on zero | ±0.02%F.S./10℃ | Temperature effect on output | ±0.02%F.S./10℃ |
| Input resistance（Ω） | 385±10 | Output resistance（Ω） | 350±3 |
| Insulation resistance | ≥5000MΩ | Excitation voltage | 5V-10V(DC) |
| Compensated temperature range | -10~+50℃ | Operating temperature range | -20~+60℃ |
| Safe overload | 120%FS | Breaking loading | 150%FS |
| Cable | Φ6 X 12M | Cable color code | Input: red+ black- |
| Or customized by request | Output: green+ white- |
Double Shear Beam Load Cell ZH-960SH
| Capacity | 30T | Material | Alloy steel/ stainless steel |
| Rated Output(mV/V) | 2.0±0.004 | Nonlinearity | ±0.3%FS |
| Hysteresis | ±0.3%FS | Repeatability | ±0.1%FS |
| Creep(30 minutes) | ±0.03%FS | Zero balance | ±2.00%FS |
| Temperature effect on zero | ±0.03%F.S./10℃ | Temperature effect on output | ±0.02%F.S./10℃ |
| Input resistance（Ω） | 750±3 | Output resistance（Ω） | 700±5 |
| Insulation resistance | ≥5000MΩ | Excitation voltage | 5V-18V(DC) |
| Compensated temperature range | -10~+40℃ | Operating temperature range | -20~+60℃ |
| Safe overload | 150%FS | Breaking loading | 250%FS |
| Cable | Φ6 X 12M | Cable color code | Input: red+ black- |
| Or customized by request | Output: green+ white- |
Mainly used in electronic truck scale, dynamic railroad scale, big capacity hopper scale and other weighing systems.
